ENT microscopes

Alltion

Alltion (Guangxi) Instrument Co. is a specialised manufacturer of operating microscopes for ENT, dentistry and colposcopy, with CE, FDA and ISO certification. The AM and ANGEL series offer apochromatic optics, long-life LED illumination, built-in 4K cameras and support systems from mobile floor stands to ceiling mounts.

Request a quote Manufacturer website

ENT surgical microscope

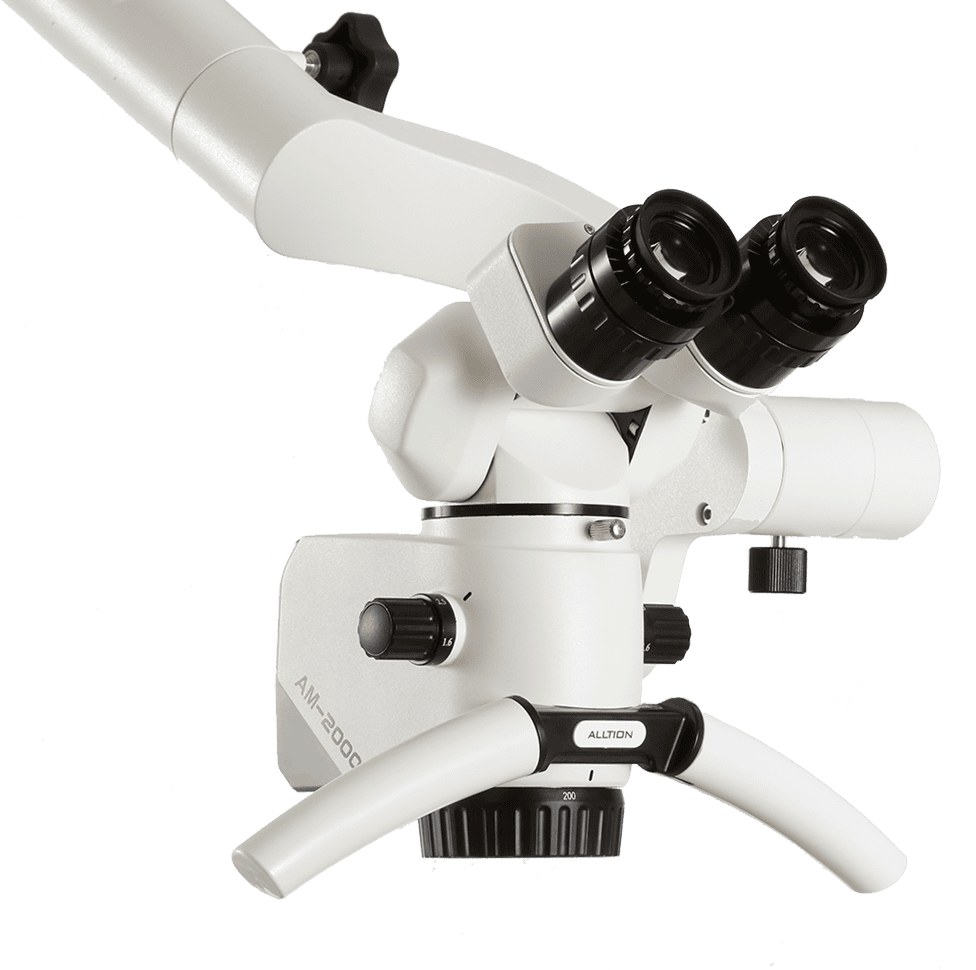

AM-2000

AM-2000 is an ENT surgical microscope with manual 5-step magnification and apochromatic optics, offered with a fixed 250 mm objective or a 250–430 mm variable objective. The LED illumination with a lifetime of over 60,000 hours delivers up to 50,000 lux, with three light-spot sizes and green/orange filters. Binocular tubes are configurable (straight, 45° or 0–180° inclinable) and the ALL-CAM2 (Full HD) or ALL-CAM4 (4K) camera system enables photos, video and image comparison with a wireless foot pedal.

Magnification: Manual, 5-step: 3.4 / 5.3 / 8.5 / 13.6 / 21× (250 mm objective)
Objective: 250 mm fixed or 250–430 mm variable (optional 200–310 mm)
Binocular: Straight; optional 45° or 0–180° inclinable with 50–75 mm IPD adjustment
Eyepieces: 12.5×/18B (optional 10×/21B), diopter ±6D
Illumination: LED ≥ 60,000 h, up to 50,000 lux, 5500 K, CRI ≥ 85%, green/orange filters
Camera (optional): ALL-CAM2 Full HD 1080p 60 fps or ALL-CAM4 4K 60 fps, SONY CMOS sensor
Power: AC 100–240 V, 50/60 Hz; 25–60 VA
Support system: Mobile floor stand; optional ceiling, wall, fixed floor, table mount

Request a quote Manufacturer page

ENT surgical microscope with 4K camera

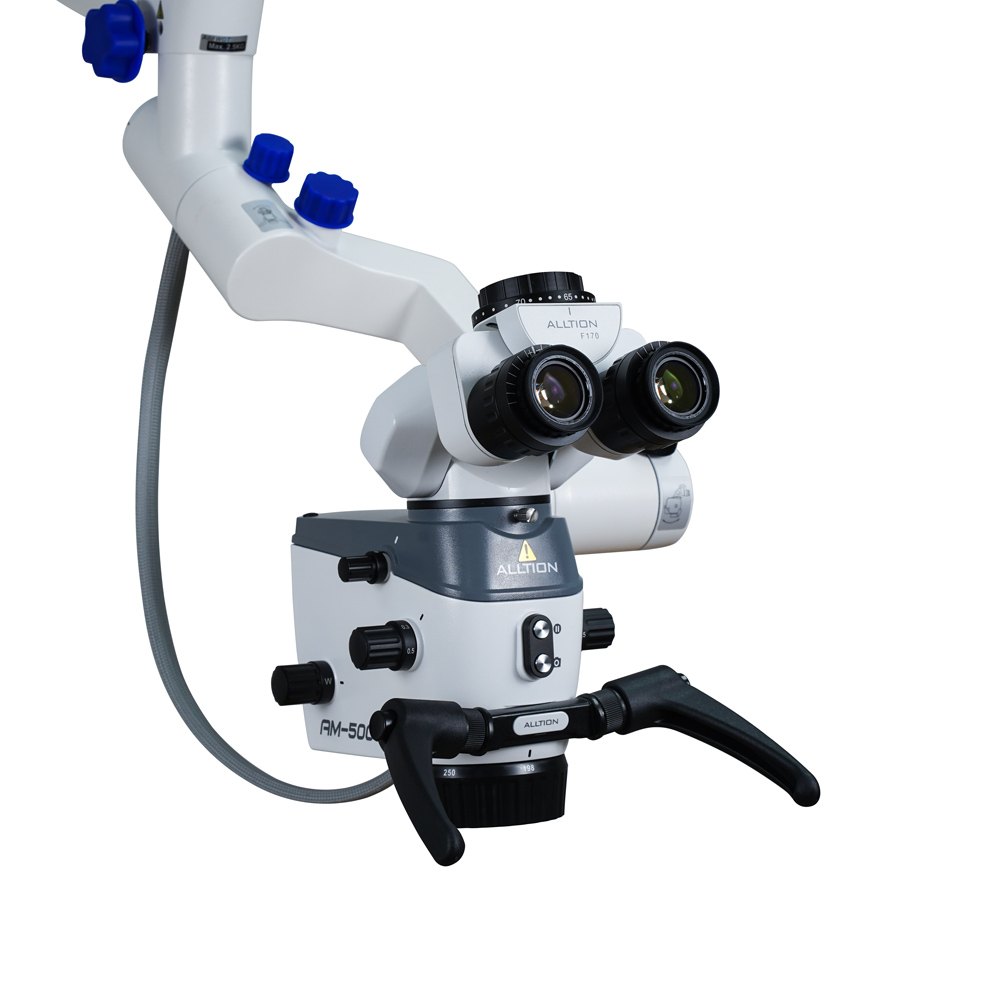

AM-5000

AM-5000 is Alltion's top-tier surgical microscope, with manual 6-step magnification (1.4–22.8×), a 198–455 mm variable objective and premium apochromatic optics. It has a built-in 4K camera with WiFi and HDMI, an integrated depth-of-field device, the FORA flexible optics rotating assembly and LED illumination up to 80,000 lux with an optional fluorescence mode. The support system ranges from a mobile floor stand to ceiling or wall mounts.

Magnification: Manual, 6-step; 1.4–22.8×
Objective: 198–455 mm variable (optional 250 / 300 / 400 mm)
Binocular: 0–180° inclinable with 50–75 mm IPD adjustment (optional 45° or straight)
Eyepieces: 12.5×/18 mm (optional 10×/21 mm), diopter ±7D
Illumination: LED ≥ 50,000 h, up to 80,000 lux, 5500 K, CRI ≥ 85%, green/yellow filters, optional fluorescence
Built-in camera: 4K 3840×2160 60 fps, SONY 1/1.8" 8 MP sensor, HDMI 2.0, USB, WiFi, JPG photo / MP4 video
Power: AC 100–240 V, 50/60 Hz; 25–80 VA
Support system: Mobile floor stand; optional fixed stand, 950 pantograph arm, ceiling, wall, table mount

Request a quote Brochure (PDF) Manufacturer page

Motorised ENT surgical microscope

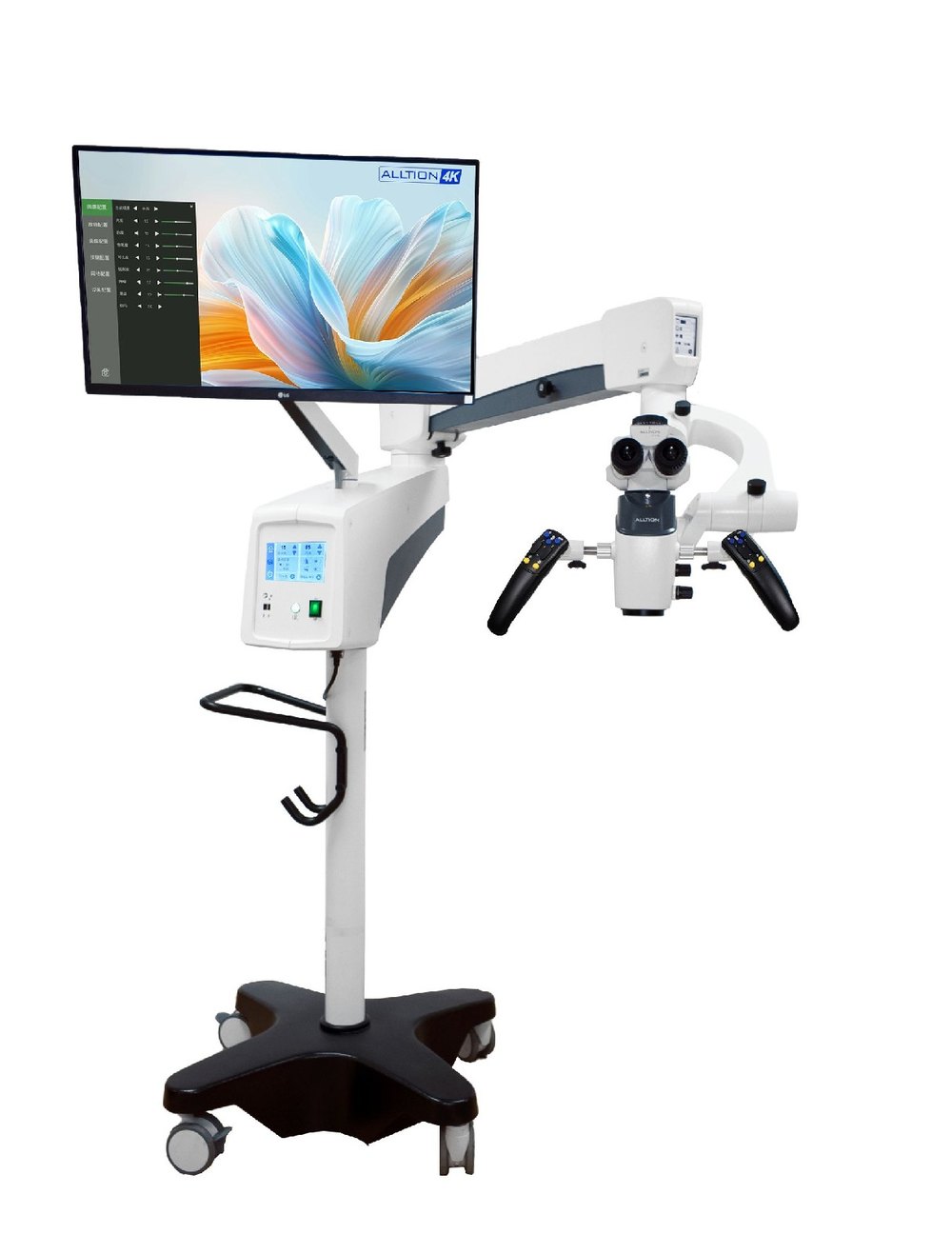

ANGEL 100

ANGEL 100 is an ENT surgical microscope with motorised 1:6.25 zoom (0.4–2.5×, total magnification 1.7–19×) and a motorised 198–455 mm objective. The multi-functional handles control zoom, focus, brightness and photo/video recording, while the 6-joint electromagnetic lock releases with one touch. LED illumination reaches 90,000 lux with CRI up to 90%, a 4K camera is built in and a 3D camera system is available.

Magnification: Motorised 1:6.25 zoom, 0.4–2.5×; total 1.7–19×
Objective: 198–455 mm motorised
Binocular: 0–180° inclinable, IPD 50–75 mm
Eyepieces: 12.5×/18B ±7D (optional 10×/21B)
Illumination: Natural-light LED, up to 90,000 lux, CRI up to 90%, orange/green filters, 3 spot sizes
Camera: Built-in 4K; optional 3D system
Control: Multi-functional handles, wireless foot pedal, 6-joint electromagnetic lock
Support system: Mobile floor stand with 120° balance arm

Request a quote Manufacturer page

Motorised ENT surgical microscope

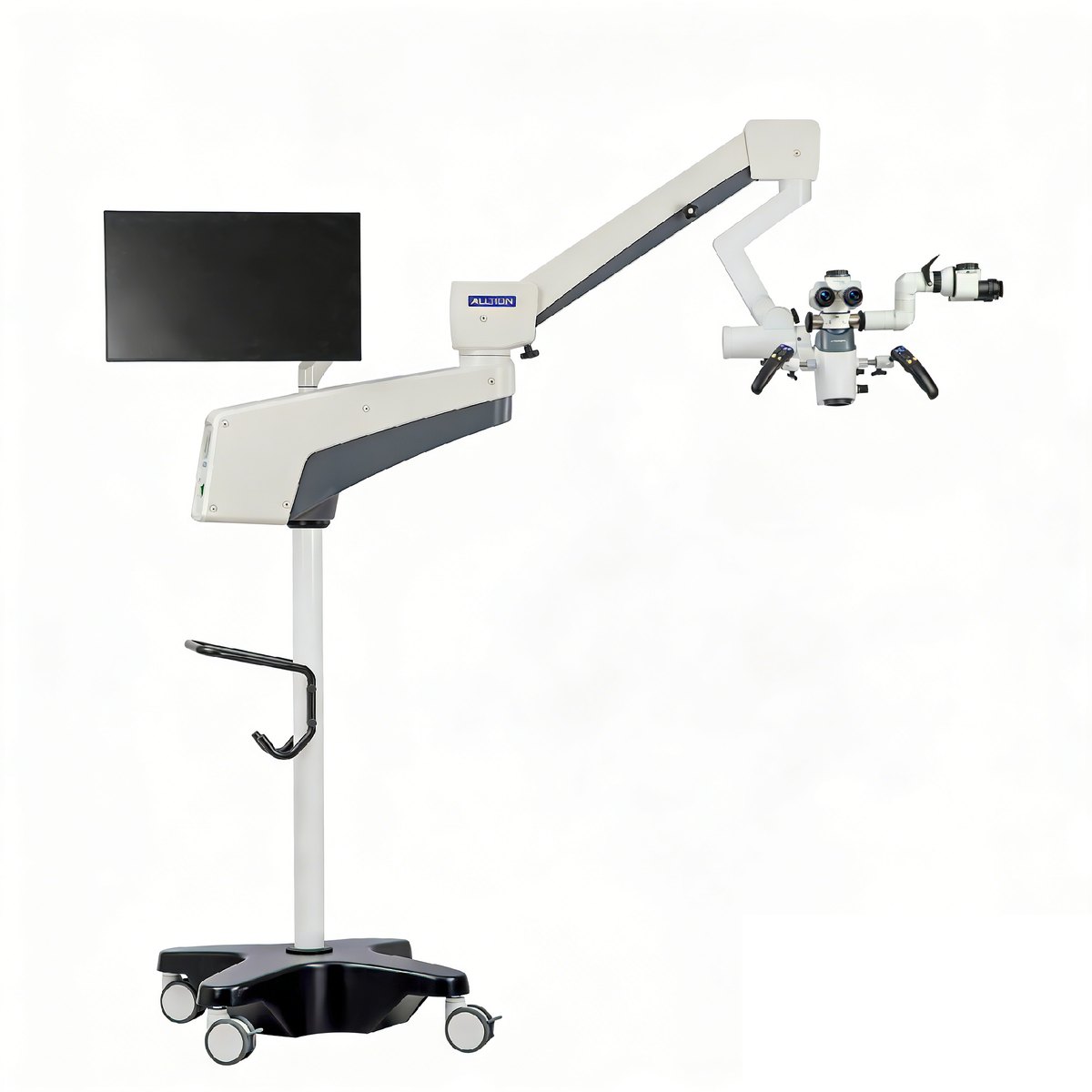

ANGEL 200Plus

ANGEL 200Plus is the advanced version of the ANGEL series, with motorised 1:6.25 zoom (0.4–2.5×), a motorised 198–455 mm objective (optional up to 610 mm) and an integrated depth-of-field device. The electronic handles control zoom, fine focus, brightness and recording, and release the joints for quick positioning. LED illumination up to 90,000 lux, a built-in 4K camera and the C-type balance arm make it suitable for the ENT operating room.

Magnification: Motorised 1:6.25 zoom, 0.4–2.5×; total 1.7–19×
Objective: 198–455 mm motorised (optional 200–610 mm)
Binocular: 0–180° inclinable, IPD 50–75 mm
Eyepieces: 12.5×/18B ±7D (optional 10×/21B)
Illumination: Natural-light LED, up to 90,000 lux, CRI up to 90%, orange/green filters
Camera: Built-in 4K; optional 3D system
Control: Multi-functional handles, wireless foot pedal (option), 6-joint electromagnetic lock
Support system: Mobile floor stand with C-type balance arm
Options: Face-to-face stereo bridge, 2D/3D assistant scope

Request a quote Manufacturer page
