Diagnostic audiometer with bone conduction
Oscilla A50

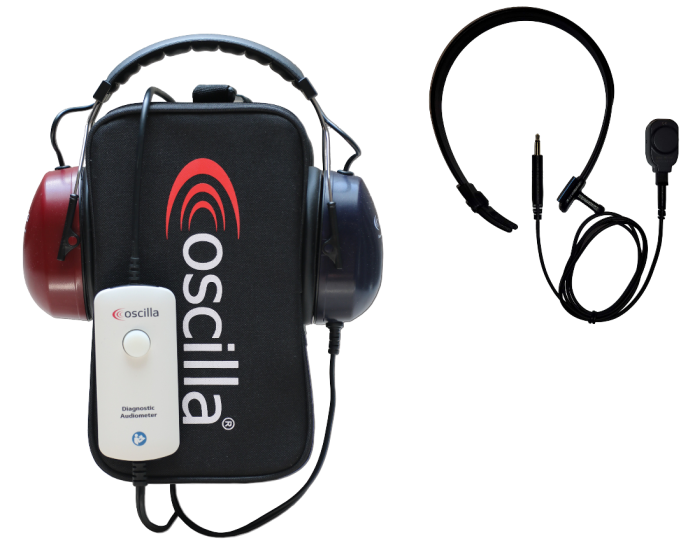

The A50 is a portable diagnostic audiometer that connects to a PC via USB and is powered by the same cable, with no adapter needed. The AudioConsole software offers manual and automatic tests, including Hughson-Westlake, Weber and SISI, and stores patient data. The standard package includes H210A headphones, the BC-2 bone conductor and a carrying bag.
- Tests
- Manual, 20 dB auto, Hughson-Westlake, Trio auto, Weber, SISI, ear-protection test
- Frequencies (AC)
- 125 Hz – 8,000 Hz, 11 frequencies
- Level (AC / BC)
- –10 to 110 dB / –10 to 70 dB, 1, 2 or 5 dB steps
- Signals
- Continuous, pulsed, warble; narrow-band masking
- Connection / power
- USB 2.0, Windows 10 and 11
- Dimensions / weight
- 150 × 140 × 110 mm, approx. 600 g
- Standards
- IEC 60645-1 Type 3, CE MDR 2017/745 class IIa
